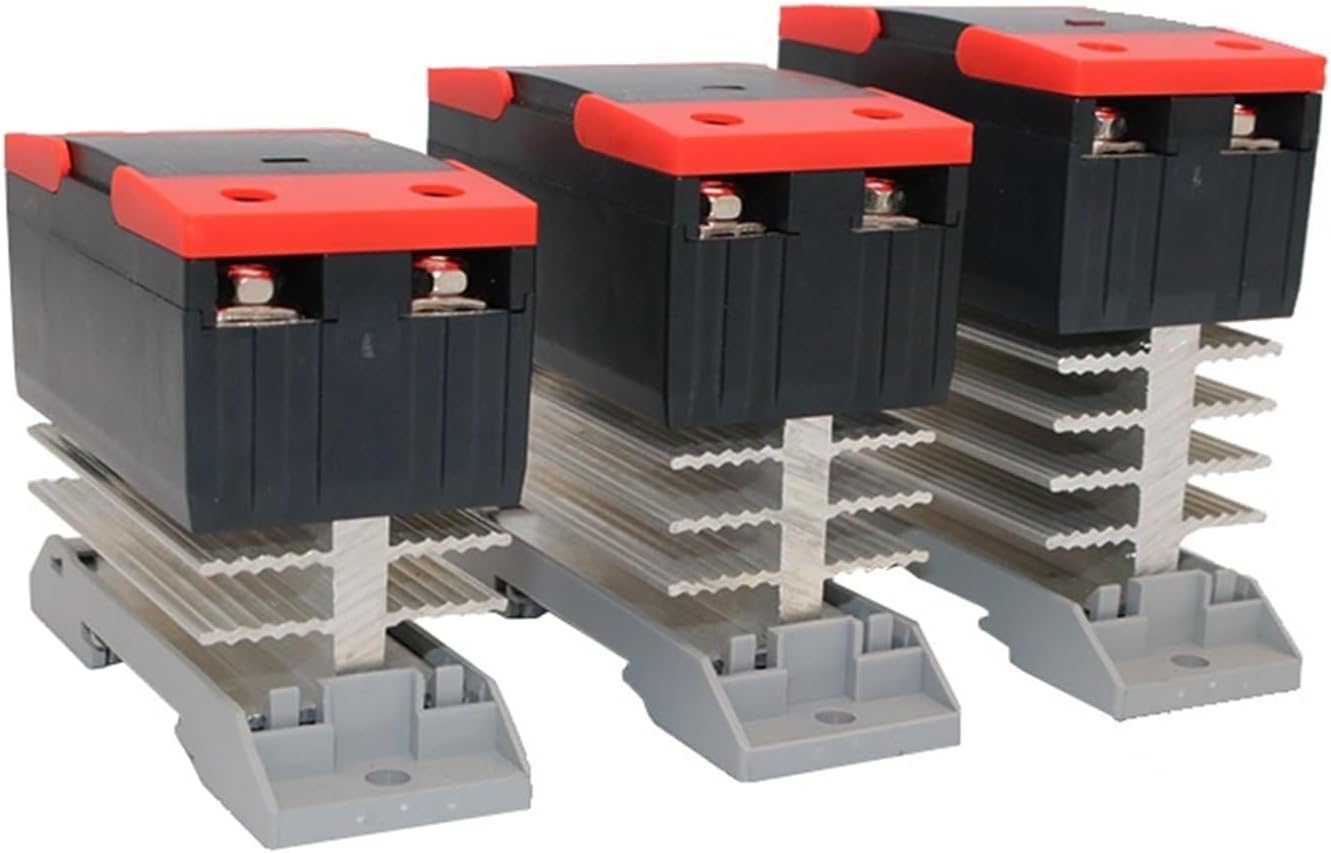

Din Rail Heat Sink Single Phase SSR Solid State Relay 10A 25A 40A 60A 80A 100A 120A DC Control AC(AC-AC,40A)
Product details
| Management number | 211094265 | Release Date | 2026/04/04 | List Price | $17.06 | Model Number | 211094265 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
relayRelay10A 25A 40A 60A 80A 100A 120A Din Rail Mounted Solid State Relay SSR Single Phase DC Control AC With Heat SinkModel: LCDR-48010-120DAControl: DC to ACLoad Current: 10A 25A 40A 60A 80A 100A 120AControl Voltage: 3-32VDCLoad Voltage: 24-480VACMax Input Current: 12mAMust Operation Voltage: 2.8VDCMust Release Voltage : 1.5VDCOutput Voltage: 24-480VACPeak Voltage: 800VOperation Temperature : -30 to 80Max off-state leakage current:2mAMax on-state voltage drop: 1.5VDielectric strength : 2500VCertificates: CEFeatures1.Built-in TVS to protect triac.2.With LED indicator.3.Zero-cross Or Random turn-on.The default is zero cross SSR.4.Random turn-on needs to be .Precautions1.When choosing a SSR please notice the actual load current and working ambient temperature.2.Apply heat-radiation silicon grease of a heat conductive sheet between the SSR and heat sink.3.Tighten the ssr terminal screws properly.4.Please do not use the relay beyond the descriptions in the data sheet.
- relay
- Relay
- Din Rail Heat Sink Single Phase SSR Solid State Relay 10A 25A 40A 60A 80A 100A 120A DC Control AC
| Model | ENPNRMLEH |
|---|---|
| Brand Name | ENPNRMLEH |
| Part Number | ENPNRMLEH |
| Manufacturer | ENPNRMLEH |
